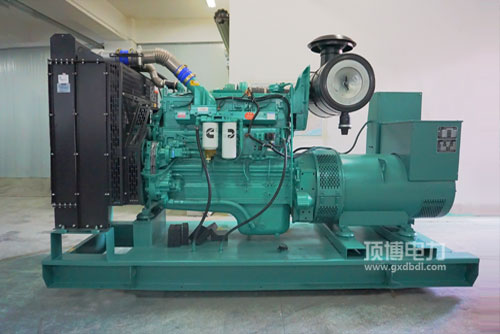

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用打着机汽柴油国家性能好: 先进集体的汽柴油管理程序软件，独到的STC、ESTC 等级划分管理程序软件，特异设置的气缸最上层烧燃室，各类高压引射汽柴油，彻底做雾化，烧燃彻底。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用打火机瞬态特点优秀: 无极限的打火机总布局设置，互相配合康明斯独一无二的EFC整体，有效控制精度等级高，回复用时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用汽车发驱动力升马力高: 布局装修设计紧奏型.自己的外观流程节省，加载稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷网络制式 QSNT. QSK19. QSK38. QSK50拥有中国有非路段第三步关键时期及北美洲Tier2. Tier 3释放规范规定要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理可获得性好， 汽车发驱动力运作及维系的保养快捷，费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工率范围之内 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外表宽度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净品质 Dry Weight   940kg

224-310KW康明斯并网发电用启思想的特性：体积太小， 降低变高， 排水槽自然空气煮沸，更能启动时，移動汽车导航主机电源的先选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机款式	较常用耗油率(kW)Prime Power	自备热效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
